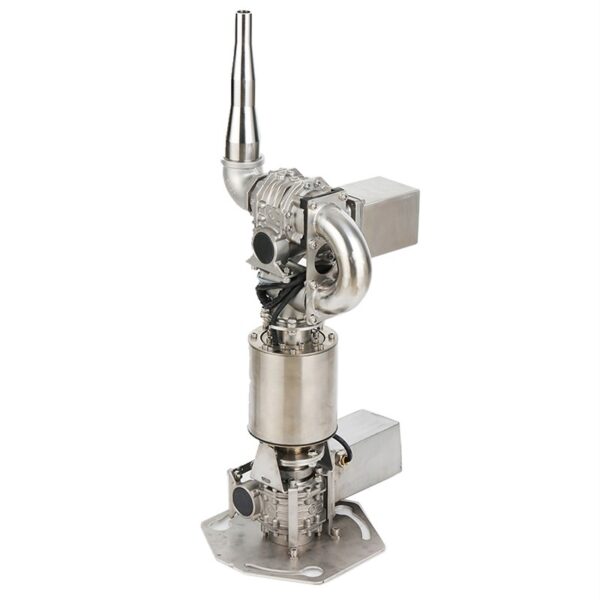

Individual swiveling fountains up to 20 m high: The Multi Directional Drive 2D /DMX/ is a swivel drive with two axes and fascinate with phenomenal, dynamic water effects with fountain heights of up to 20 m.

With a pivoting range of max. 90° (2 x 45°) on the X-axis and max. 90° (2 x 45°) on the Y-axis, the Multi Directional Drive multifaceted in its movement. This enables the creation of impressive water effects. A Fountain height of up to 20 m can even be achieved with the Big Smooth Plume nozzle.

Characteristic

• Multi-directional drive, suitable for different nozzle types

• Pivoting range up to 90° (2 x 45°) on the x-axis and 90° (2 x 45) on the y-axis
• Min. Water height of 1000 mm, max. water height of 20000 mm
• Multi Directional Drive is suitable for Big smooth – Plume nozzle for 6m – 20 m fountain height
• G 1 ½”- female thread for nozzle connection, DN 50 connection pressure line
• Robust stainless steel construction

• For fresh- and pool water
• Controllable with a DMX/PLC controller ( not included in scope of delivery )
• Energy efficient motor, 55 V/ AC
